Case study
System Integration Service
Objective
The objective of this Assignment is to provide solution for new factory system, Installation and configuration of New Server Room & Fiber Optic Backbone . The project aims to create suitable and conditioned Server Room and ICT Security systems in order effective management to support business activities and services

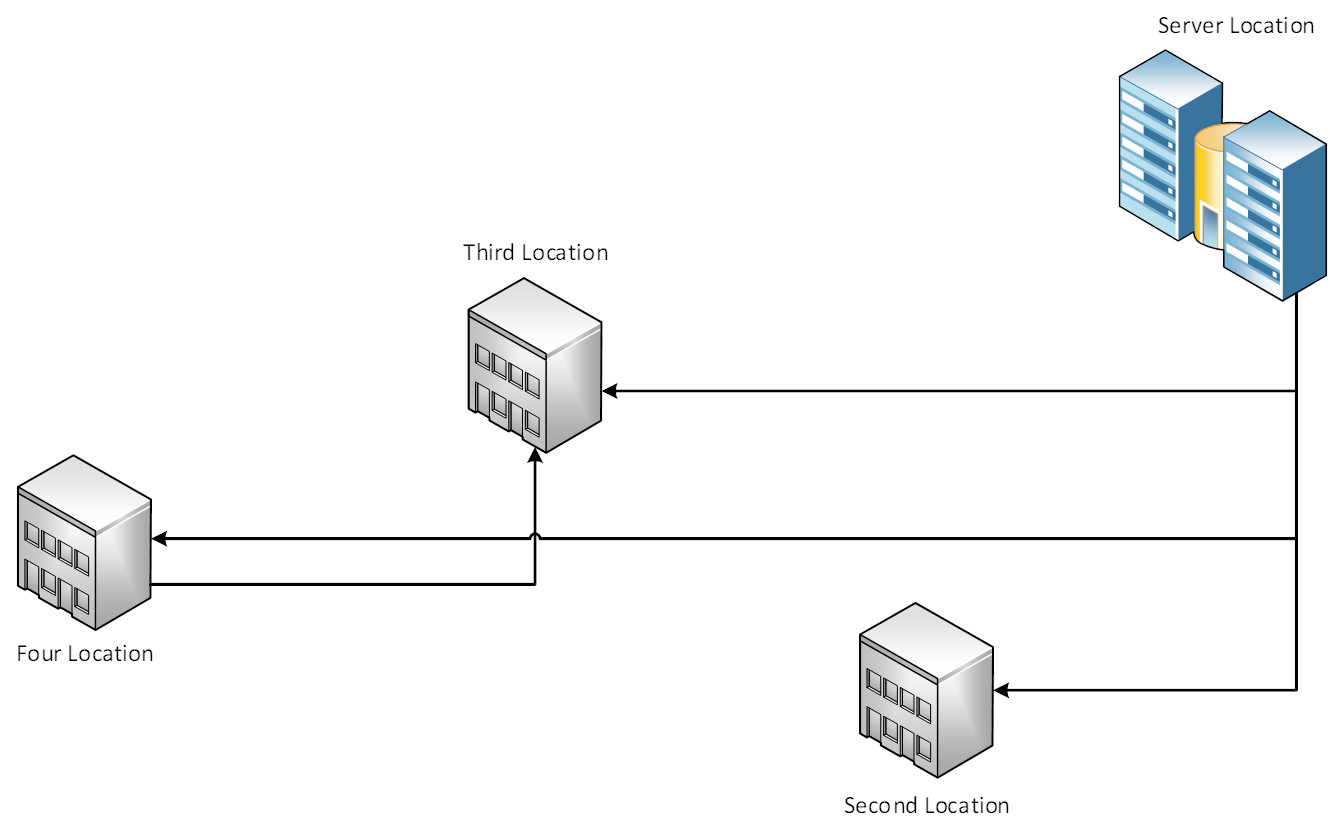

Our Product Solution
Server Location
- Raised Floor
- Electrical Panel
- UPS 6 KVA
- Rack 42U
- PDU 24 Outlet 16 A
- Server Intel® Xeon® Silver 4114, 32GB RDIMM 2666MT/s Dual Rank
- Cisco Core Switch 28-port Gigabit Managed Switch
- Cisco SFP Transceiver
- Meraki Router/Security Appliance
- Meraki Cloud Managed AP
- Synology DS918+ & HDD Internal 6TB
- CommScope AMP Cable & Accessories
License
- WinSvrSTDCore 2016 SNGL OLP 2Lic NL CoreLic
- WinSvrCAL 2016 SNGL OLP NL UsrCAL
- WinRmtDsktpSrvcsCAL 2016 SNGL OLP NL UsrCAL
- SQL Std
- SQL CAL
- VMware vSphere 6 Standard for 1 processor
- VMware vSphere 6 std 1 processor
Second Location
- Rack 9 U
- PDU 6 Outlet 9 A
- UPS 1KVA
- Cisco 10-port Gigabit Managed Switch
- CommScope AMP Cable & Accessories
Third Location
- Rack 27 U
- PDU 12 Outlet 12 A
- UPS 1KVA
- Cisco Core Switch 28-port Gigabit Managed Switch
- CommScope AMP Cable & Accessories
Four Location
- Rack 27 U
- PDU 12 Outlet 12 A
- UPS 1KVA
- Cisco Core Switch 28-port Gigabit Managed Switch
- CommScope AMP Cable & Accessories
